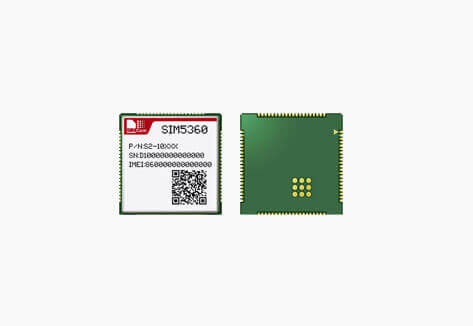

The SIM5360 series from SIMCom is a Dual-Band HSPA+/WCDMA and Quad-Band GSM/GPRS/EDGE module solution. It is ideal for HSPA (3G), WCDMA, GSM (2G), as well as EDGE (2.5G).

The SIM5360 is packed with advanced features for use across diverse customer applications. It offers speeds up to 14.4 Mbps for downlink data transfer.

The SIM5360 can be used in numerous technologies such as TTS, Embedded AT, SSL Encryption, LUA, and SIM Access Profile. It finds wide applications in GNSS (Global Navigation Satellite System), Remote control of appliances, Wireless sensor networks and Vehicle tracking systems. This module has required extension capability for interfaces such as UART, USB 2.0, SPI (Serial Peripheral Interface Bus), and 12C keypad.

SIM5360 series
3G(EV-DO/HSPA+)
2.5G(EDGE)
2G(GSM/GPRS )
Dual-Band 3G
Quad-Band 2G
SMT
FOTA
TTS
Embedded AT
MMS
SSL Encryption
LUA
USB
Industrial Interface
Serial interface
SIM Access Profile
RIL Driver
GNSS
GNSS
Details
General features SIM5360
  • SIM5360A
    • Dual-Band UMTS/HSPA+ 850/1900MHz
    • Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
  • SIM5360(J)E
    • Dual-Band UMTS/HSPA+ 900/2100MHz
    • Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
  • SIM5360J(D)
    • Output power
      • UMTS 850/1900: 0.25W
      • UMTS 900/2100: 0.25W
      • GSM850/GSM900: 2W
      • DCS1800/PCS1900: 1W
    • Dual-Band UMTS/HSPA+ 800(850)/2100MHz
    • GPRS multi-slot class 12
    • EDGE multi-slot class 12
    • Control Via AT Commands
    • Supply voltage range: 3.4V~ 4.2V
    • Operation temperature: -40℃ to +85℃
    • Dimension: 30 X 30X 2.9 mm
    • Weight: 5.7g
    • Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
Specifications for GPRS Data
  • CELL assistant Location (No GPS)
  • A-GPS: MS-Based, MS-Assisted
  • Stand-alone GPS
  • QUALCOMM XTRA GPS mode
  • GLonass
Specifications for Data transfer
  • HSPA+
    • Max. 14.4Mbps(DL), Max. 5.76Mbps(UL)
  • WCDMA
    • Max. 384Kbps(DL), Max. 384Kbps(UL)
  • EDGE Class:
    • Max. 236.8Kbps(DL), Max. 236.8Kbps(UL)
  • GPRS
    • Max. 85.6Kbps(DL), Max. 85.6Kbps(UL)
Specifications for SMS
  • Point to point MO and MT
  • Text and PDU mode
Other Features
  • USB Driver for Microsoft Windows 2000/XP/Vista/7/8
  • USB Driver for Windows CE/Mobile
  • USB Driver for Linux/Android
  • Firmware update via USB
  • Embedded AT
  • LUA Script Language
  • MMS
  • TCP/IP
  • FTP/FTPS/HTTP/HTTPS/SMTP/POP3/DNS
  • FOTA
Interfaces
  • USB2.0
  • UART
  • SIM card
  • SPI
  • I2C
  • Keypad(5*5)
  • Constant current sink
  • GPIO
  • RTC
  • ADC
  • SDIO
  • PCM *
Certifications
  • SIM5360A
    • FCC
    • ROHS
    • REACH
  • SIM5360JE/JD
    • Telec
    • JATE
    • ROHS
    • REACH
  • SIM5360E
    • CE
    • GCF
    • ROHS
    • REACH
    • CCC
    • CTA
