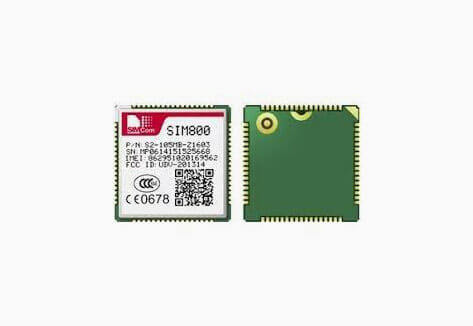

The SIM800 is a complete Quad-band GSM/GPRS module, brought to you from the house of SIMCom. It is manufactured with precision using advanced Surface Mount Technology (SMT). This new module can be embedded in several modern-day customer applications.

The vast range of capabilities of SIM800 makes it appropriate for modern-day cellular applications. Its compact build perfectly meets the design needs of customers. This module supports a wide frequency range from Quad-band 850MHz to 1900MHz. It can transmit Voice, SMS and data information with low power consumption.

SIM800
2G(GSM/GPRS )
Quad-Band 2G
SMT
eCall
TTS
Embedded AT
MMS
SSL Encryption
Jamming Detection
USB 2.0
Bluetooth
Industrial Interface
Serial interface
SIM Access Profile
RIL Driver
RLS Monitoring
Antenna Diagnostics
Details
General features SIM800
  • Quad-band 850/900/1800/1900MHz
  • GPRS multi-slot class 12/10
  • PRS mobile station class B
  • Compliant to GSM phase 2/2+
    • Class 4 (2 W @ 850/900MHz)
    • Class 1 (1 W @ 1800/1900MHz)
  • Bluetooth: compliant with 3.0+EDR
  • Dimensions: 24*24*3mm
  • Weight: 3.14g
  • Control via AT commands (3GPP TS 27.007,27.005 and SIMCOM enhanced AT Commands)
  • Supply voltage range 3.4 ~ 4.4V
  • Low power consumption
  • Operation temperature:-40°C ~85°C
Specifications for GPRS Data
  • GPRS class 12: max. 85.6 kbps (downlink/uplink)
  • PBCCH support
  • Coding schemes CS 1, 2, 3, 4
  • PPP-stack
  • CSD up to 14.4 kbps
  • USSD
  • Non transparent mode
Specifications for SMS via GSM/GPRS
  • Point to point MO and MT
  • SMS cell broadcast
  • Text and PDU mode
Software features SIM800
  • 0710 MUX protocol
  • Embedded TCP/UDP protocol
  • FTP/HTTP
  • MMS
  • E-MAIL
  • DTMF
  • Jamming Detection
  • Audio Record
  • TTS (optional)
  • Embedded AT (optional)
Specifications for voice
  • Tricodec
    • Half rate (HR)
    • Full rate (FR)
    • Enhanced Full rate (EFR)
  • AMR
    • Half rate (HR)
    • Full rate (FR)
  • Hands-free operation (Echo suppression)
Interfaces
  • 68 SMT pads including
  • Analog audio interface
  • PCM interface(optional)
  • SPI interface (optional)
  • RTC backup
  • Serial interface
  • USB interface
  • Interface to external SIM 3V/1.8V
  • Keypad interface
  • GPIO
  • ADC
  • GSM Antenna pad
  • Bluetooth Antenna pad
Specifications for SMS via GSM/GPRS
  • Point to point MO and MT
  • SMS cell broadcast
  • Text and PDU mode
Compatibility
  • AT cellular command interface
Certifications
  • CE
  • GCF
  • FCC
  • TA
  • CTA
  • CCC
  • ROHS
  • REACH
  • ANATEL
  • A-TICK
Shiv Electronics offers the SIM800 module at affordable prices. Get in touch with us for further product related queries.
